Geography 140
Introduction to Physical Geography

Lecture: Vertical Thermal Structure of the Atmosphere

--------------------
 IV. The atmosphere has a vertical thermal structure as well as a vertical
     pressure structure.
     A. The atmosphere has been divided into layers according to the behavior
        of temperatures in their relationship to altitude.  In this lecture,
        I'll start from the ground and move up through the atmosphere.

        [ vertical temperature structure of the atmosphere ]

     B. The lowest layer is the troposphere, the layer in which we live and in
        which our weather is experienced.  In fact, "troposphere" means the
        realm of mixing, because air is vigorously mixed and stirred here by
        storms, convection, and wind systems.
        1. It extends up roughly 10 km (oh, about 6 miles-ish).
        2. It is characterized by an inverse relationship between air
           temperatures and altitude:  Temperatures drop as you climb up in
           the troposphere.
           a. In still air, it cools by an average of 6.5° C for every
              kilometer (1,000 meters) gain in elevation.  So, if it's a
              gorgeous, sunny, toasty day at Beach, 30° C (~86° F),
              it'll be about 23.5° C (room temperature) on top of the
              Santa Monicas out near the Ventura County line.
           b. This drop in temperatures with a rise in elevation is called the
              "normal lapse rate."  It represents an average, not the actual
              lapse rate at a particular place and time.
        3. The tropopause is the top of the troposphere: The troposphere stops
           here.
           a. It is situated about 10 km up.
                i. It's more like 8 km (5 mi.) over the polar regions in
                   winter (cold air tends to settle downward) and 18 km (11
                   mi.) over the equatorial regions, due to greater convection
                   there (heating caused by the direct rays of the sun).
               ii. In the mid-latitudes, it's lower in winter and higher in
                   summer, for the same sorts of reasons.

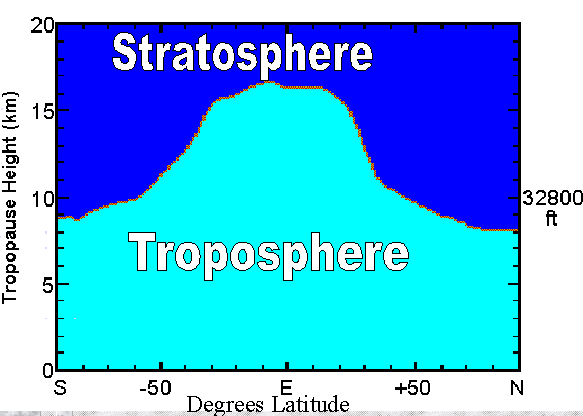

                   [ cross section showing tropopause from pole to


           b. At the tropopause, temperatures stop dropping with gains in
              altitude.
                i. The normal lapse rate no longer applies.
               ii. In fact, temperatures do nothing as altitude increases:
                   The tropopause could be described as an "isothermal" belt
                   (a zone having the  same temperatures as you move up).
              iii. Temperatures at the tropopause are pretty cold:  about
                   -50° C (roughly -120° F).
           c. The tropopause, then, separates the intensely mixed air of the
              troposphere from the much quieter air of the stratosphere (home
              of the ozone layer, which you met before).
     C. The stratosphere is the next major division.
        1. It extends from the tropopause up to about 50 km.
        2. It is characterized by a direct relationship between temperatures
           and altitude:  Temperatures climb as you climb.
           a. The top of the stratosphere is called, yes, you guessed it, the
              stratopause, another isothermal belt.
           b. By the time you get to the stratopause, temperatures have warmed
              up to freezing or close to it!
           c. This warming with altitude has to do with ... ... the presence
              of the ozone layer in the stratosphere.  Remember the ozone
              layer, up there from, oh, 20 to 50 km?  Ozone absorbs high
              energy, shortwave, ultraviolet radiation from the sun.
              Absorption of energy heats the absorbing object, and so it is
              here:  Ozone heats up by absorbing UV radiation, and that
              accounts for the climb in temperatures with a climb in altitude
              here in the stratosphere.
     D. The mesosphere is the layer above the stratopause.
        1. It extends up from the stratopause to about 80 km.
        2. It is characterized by resumption of an inverse relationship
           between temperature and altitude: Temperatures go back to dropping
           as you climb.
        3. And do they ever drop!  They get down to nearly -100° C
           (~200° F).  This is the coldest layer in the atmosphere.
        4. That low temperature is attained at the mesopause, which tops the
           mesosphere.
        5. In a manner of thinking, the mesosphere is a resumption of the
           troposphere after the rude interruption of the ozone layer in the
           stratosphere.
        6. The difference is that the mesosphere is not in contact with the
           forces mixing up the air in the troposphere, so it's much quieter
           up there.
     E. The thermosphere is the last thermally defined layer of the
        atmosphere.
        1. It is characterized by a direct relationship between temperature
           and altitude.
        2. Temperatures get up to 725° - 1,225° C.
        3. This sounds terribly impressive, but you have to remember that
           there are so few molecules and ions up there to get excited to
           motion levels corresponding to 725° - 1,225° C.  If you
           were up there, it would feel pretty cold as you got yourself a
           nasty dose of radiation, because there are so very few molecules to
           transfer energy to your skin.  If you were up there, bare-skinned,
           you'd have bigger things to worry about than the measured air
           temperature!
        4. The thermosphere can be further subdivided on the basis of physico-
           chemistry, kind of like when we noted that the (thermally-defined)
           stratosphere contains the (chemically-defined) ozone layer.
           a. The lower thermosphere is called the ionosphere.
                i. The ionosphere extends from roughly 80 km (50 mi.) to
                   somewhere around 300 to 600 km out (~185 - 375 mi.).
               ii. It is the first line of defense for Earth against extremely
                   short wave radiation (e.g., UV-B and UV-C) and, to a lesser
                   extent, high energy particles from the sun and cosmic
                   "rays." These particles are ionized atoms, that is, atoms
                   with missing electrons, including isolated protons and
                   alpha-particles (two protons with two neutrons and no
                   electrons).  Cosmic "rays" are deadly to life on Earth.
              iii. These rays and really high energy, fast-moving particles
                   smash into the few molecules of the ionosphere with such
                   force that they strip them of electrons, turning them into
                   ions, or electrically-imbalanced atoms, too.
               iv. The ions, with their electrical imbalances, are drawn by
                   the earth's magnetic field and align themselves with that
                   field's lines of force, rather the way iron filings align
                   themselves with the magnetic field lines on a sheet of
                   paper lying above a magnet.  This means that they are
                   really concentrated in great abundance where those magnetic
                   field lines converge, at the north and south magnetic
                   poles.
               iv. One side effect of this process and of further interactions
                   between Earth's ions and those from the sun or outer space
                   is a cascade of lower energy particles, including visible
                   light photons.  This produces the aurorae, which are often
                   visible in high latitude regions.  They look like glows,
                   rays, arcs, and even curtain-like veils (which even move,
                   kind of the way a curtain will move in an open window).
                   They're usually greenish, but other colors are sometimes
                   seen.

                   [ Aurora over Circle, Alaska, NASA Goddard SFC,

                   Dick Hutchinson of Circle, Alaska, took this picture, and
                   you can see more of his work with aurorae there at:
                   http://www.ptialaska.net/~hutch/aurora.html.

                   a. These light displays are called the aurora borealis or
                      Northern Lights in the Northern Hemisphere and the
                      aurora australis or Southern Lights in the Southern
                      Hemisphere.
                   b. Normally, you have to be near the polar regions to see
                      them but, every once in a while, especially during the
                      peaks of the sunspot cycle (when the sun is emitting a
                      stronger solar wind of charged particles), they have
                      been seen at lower latitudes, including even in the
                      tropics!  Even if they were apparent at our latitude of
                      34° N, we would probably miss the show, though,
                      because of light pollution from our city lights:  You
                      would have to be out in the mountains or desert to see
                      them if they were down in our low latitudes.
                v. Another side effect is that the ionosphere absorbs and
                   reflects radio waves.  A layer of ions at the very bottom
                   of the ionosphere (largely oxygen) forms in the daytime and
                   can absorb a lot of radio waves.  It disappears at night,
                   but dense ion layers higher up last longer into the night
                   and reflect radio waves, espeially short wave radio.  This
                   allows radio stations to be picked up way beyond the
                   horizon from the broadcast tower, which is why you can pick
                   up radio broadcasts from Nevada, Nebraska, and Iowa at
                   night sometimes.

           b. The exosphere is the second, outer layer of the thermosphere

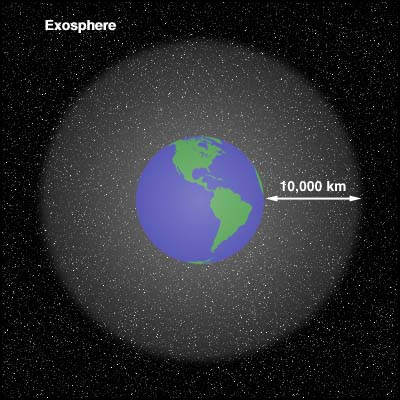

                   [ image of the exosphere, courtesy of NASA's

                i. The exosphere lies beyond about 500-1,000 km and is
                   characterized by increasing hydrogen and helium content,
                   because the oxygen and nitrogen that dominate the lower
                   atmosphere have been dissociated into ions in the
                   ionosphere.  We're not talking too many molecules and ions
                   way the heck up here.   Density shades into the levels seen
                   in interplanetary space up around, oh, 10,000 km.
               ii. Hydrogen and helium molecules can and do easily leave Earth
                   orbit for outer space from the top of the exosphere,
                   because at this altitude, when their trajectories are
                   changed by collision with another molecule to a generally
                   upward direction, they have less and less chance of
                   colliding with another one and being bounced back
                   earthward.  So, there is a constant loss of H and He to
                   outer space from the upper exosphere, and Earth's gravity
                   is not strong enough to hold onto these lightest of all
                   gasses (unlike such big bruisers as Jupiter, Saturn,
                   Uranus, and Neptune, the gas giant planets in the outer
                   solar system, which retain hydrogen and helium atmospheres
                   with their tremendous size and gravity).
  V. So, you've seen that the atmosphere has a distinct vertical structure,
     which can be described in terms of a pressure gradient, as in the last
     lecture, and in terms of its thermal structure and its physico-chemical
     structure.  I organized this particular lecture around the thermal
     structure of the atmosphere but included discussion of the physico-
     chemical layers within the thermal layers where they're found.  So, the
     ozone layer was discussed as part of the stratosphere, while the
     ionosphere and exosphere were discussed under the thermosphere.  There is
     another distinction often made, too: We can differentiate the vertical
     structure of the atmosphere by the balance of chemical mixing and
     ionization:
     A. The homosphere is that portion of the lower atmosphere with almost no
        ionization and in which there are mixing mechanisms moving gases from
        one part of the atmosphere to another, resulting in a fairly uniform
        chemical composition:  This is the lower 80-100 km or thereabouts
        (troposphere through mesosphere).
        1. The major variation you get in here is a greater concentration of
           ozone in the stratosphere, but ozone is a non-ionized gas, even so.
        2. Throughout the homosphere, then, nitrogen and oxygen gasses
           dominate.
     B. The heterosphere is the area in which you get varying mixes of gas
        molecules and ions, and in which the nitrogen and oxygen that dominate
        the lower atmosphere give way, through ionization, to hydrogen and
        helium at the top of the atmosphere.  That would be somewhere from 80
        km to 10,000 km, where the hydrogen and helium gasses are so feebly
        held to Earth that they are constantly being Lost in Space.


Come away from this lecture knowing the four different thermally-defined
layers of the atmosphere (troposphere, statosphere, mesosphere, and
thermosphere) and what sort of relation (direct or inverse) between
temperature and altitude is found in each of them.  Know the three isothermic
belts (tropopause, stratopause, and mesopause) and what the dickens an
"isothermic belt" is.

Learn which physico-chemical feature is found in the four layers (weather in
the troposphere, ozone layer in the stratosphere, and the ionosphere and
exosphere in the thermosphere), and be able to explain the aurorae (Northern
Lights or aurora borealis and Southern Lights or aurora australis).  Also,
know the difference between the homosphere and the heterosphere and which
thermally-defined layers belong to which.
http://www.csulb.edu/~rodrigue/geog140/lectures/thermalstructure.html
