Regional Energy Profiles: U.S. Household Electricity Report
FIGURES

Release date: July 14, 2005
Figure US-1 | Figure US-2 | Figure US-3 | Figure US-4

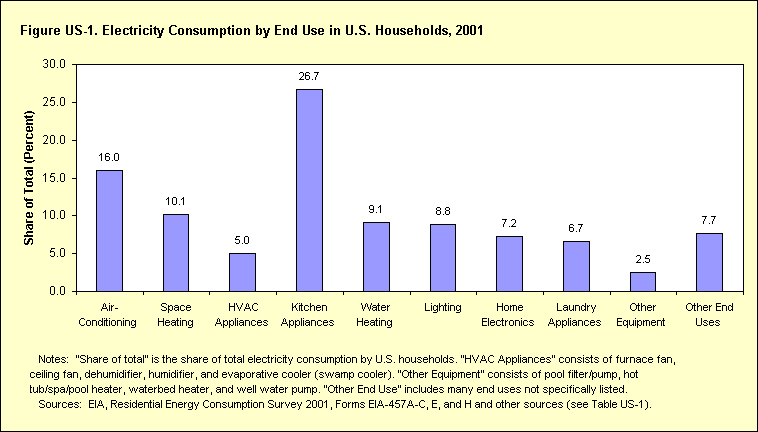

Figure US-1. Electricity Consumption by End Use in U.S. Households, 2001. If you have trouble viewing this page, please call the National Energy Information Center at 202-586-8800.

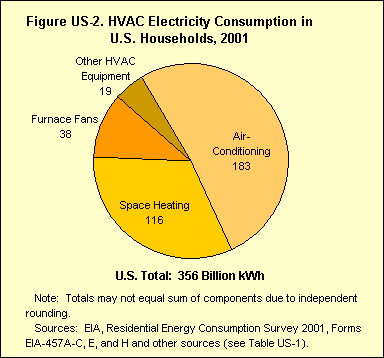

Figure US-2. HVAC Electricity Consumption in U.S. Households, 2001. If you have trouble viewing this page, please call the National Energy Information Center at 202-586-8800.

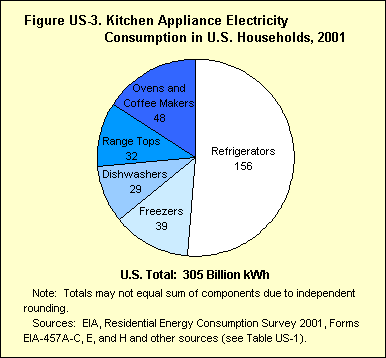

Figure US-3. Kitchen Appliance Electricity Consumption in U.S. Households, 2001. If you have trouble viewing this page, please call the National Energy Information Center at 202-586-8800.

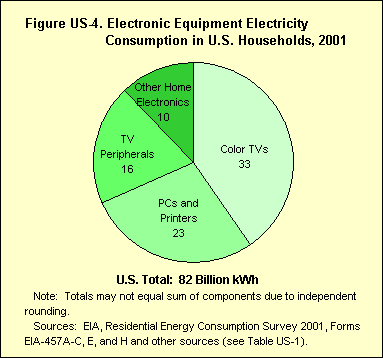

Figure US-4. Electronic Equipment Electricity Consumption in U.S. Households, 2001. If you have trouble viewing this page, please call the National Energy Information Center at 202-586-8800.
