Vegetable Oil Refining -

Crude oil is typically shipped for refining to establishments engaged in the production of edible vegetable oils, shortening, and margarine. Crude vegetable oils contain small amounts of naturally occurring materials such as proteinaceous material, free fatty acids, and phosphatides. Phosphatides are removed for lecithin recovery or to prepare the crude oil for export. The most common method of refining oil is by reacting it with an alkali solution which neutralizes the free fatty acids and reacts with the phosphatides. These reacted products and the proteinaceous materials are then removed by centrifuge. Following alkali refining, the oil is washed with water to remove residual soap, caused by saponification of small amounts of the triglycerides (oil). Color-producing substances within an oil (i. e., carotenoids, chlorophyll) are removed by a bleaching process, which employs the use of adsorbents such as acid-activated clays. Volatile components are removed by deodorization, which uses steam injection under a high vacuum and temperature. The refined oil is then filtered and stored until used or transported.

Emissions -

Particulate matter and volatile organic compounds are the principal emissions from vegetable oil processing. Particulate matter (PM) results from the transfer, handling, and processing of raw seed.

VOC emissions are the oil extraction solvent, hexane, which is classified as a hazardous air pollutant.

Particulate emissions from grain handling are discussed in the Interim AP-42 Section 9.9.1, "Grain Elevators And Processes". Solvent emissions arise from several sources within vegetable oil processing plants. There are potential solvent emissions from the transfer and storage of hexane on site as well as potential leaks from piping and vents. Small quantities of solvent (up to 0.2 percent by volume of oil) are present in the crude vegetable oil after the solvent is recovered by film evaporators and the distillation stripper.

This hexane may volatilize during the oil-refining process; however, no emission data are available. Trace quantities of solvent are present and available for volatilization in waste water collected from the condensation of steam used in the distillation stripper and desolventizer-toaster. Emission data from waste water also are not available.

Vents are another source of emissions. Solvent is discharged from three vents: the main vent from the solvent recovery section, the vent from the meal dryer, and the vent from the meal cooler.

The main vent receives gases from the oil extractor, the film evaporator and distillation stripper, and the desolventizer-toaster. Vents for the meal dryer and meal cooler typically vent to atmosphere.

Hexane Emissions -

The recommended method for estimating annual hexane emissions from soybean solvent extraction facilities is to obtain the annual hexane usage from the specific plant's records, and to assume that all hexane make-up is due to losses to the air (SCC 3-02-019-97). (Some hexane leaves the facilities as a small fraction of the oil or meal products, but this amount has not been quantified.) If the hexane usage is determined from purchase records and the purchased amount accounts for any change in quantities stored on-site, then storage tank losses would already be accounted for in the loss estimate.

If the usage is determined from the amount metered out of the storage tanks, then the storage tank losses should be calculated separately, and in addition to, the usage losses, using the equations in AP-42 Chapter 7 or in the TANKS software. Careful application of such a material balance approach should produce emission estimates comparable in quality to those derived from a B-rated emission factor.

The mean total hexane loss reported by the plants in References 11 through 19 was 3.3 L/Mg (0.89 gal/ton [4.9 lb/ton]) of raw soybeans processed (SCC 3-02-019-98). This represents an overall total loss factor for soybean oil processing, encompassing all sources of vented and fugitive emissions (and storage tanks), as well as any hexane leaving the facility as part of the oil or meal products. For a new facility or if plant-specific usage data are unavailable, this factor, rated D, can be used as a default value until the relevant data for the facility become available. The default value should be used only until the facility can compile the data needed to develop a plant-specific hexane loss for the period of interest.

Particulate Emissions -

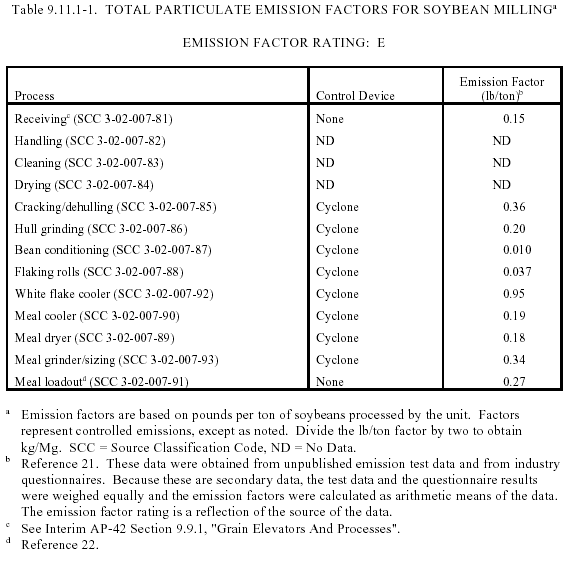

Table 9.11.1-1 presents emission factors for total PM emissions resulting from handling and processing soybeans in vegetable oil manufacturing. Emission factors are provided for PM-generating processes for the meal production process, including meal drying and cooling.

Controls -

Hexane is recovered and reused in the oil-extraction process because of its cost. The steam and hexane exhausts from the solvent extractor, desolventizer-toaster, and oil/hexane stripping are passed through condensers to recover hexane. Residual hexane from the condensers is captured by mineral oil scrubbers. The most efficient recovery or control device is a mineral oil scrubber (MOS), which is approximately 95 percent efficient. The meal dryer and cooler vents are typically exhausted to the atmosphere with only cyclone control to reduce particulate matter. Process controls to reduce breakdowns and leaks can be used effectively to reduce emissions. Quantities of hexane may be lost through storage tanks, leaks, shutdowns, or breakdowns. These losses are included in the material balance.
